Overview

This article presents intraoperative neurosurgical ultrasound images from two clinical cases: brain tumor resection and ventricular catheter placement. All images were acquired using high-frequency intraoperative transducers with real-time guidance.

Brain Tumor — Intraoperative Ultrasound

Intraoperative ultrasound is an essential tool for real-time localization of brain tumors during resection. The images below demonstrate key anatomical landmarks including the tumor capsule, cystic components, lateral ventricles, and surrounding cortex.

Ventricular Catheter Placement

Ultrasound guidance for ventricular catheter (VP shunt) placement provides real-time visualization of catheter trajectory relative to the lateral ventricles, septum pellucidum, and corpus callosum, significantly reducing misplacement rates.

Image Gallery

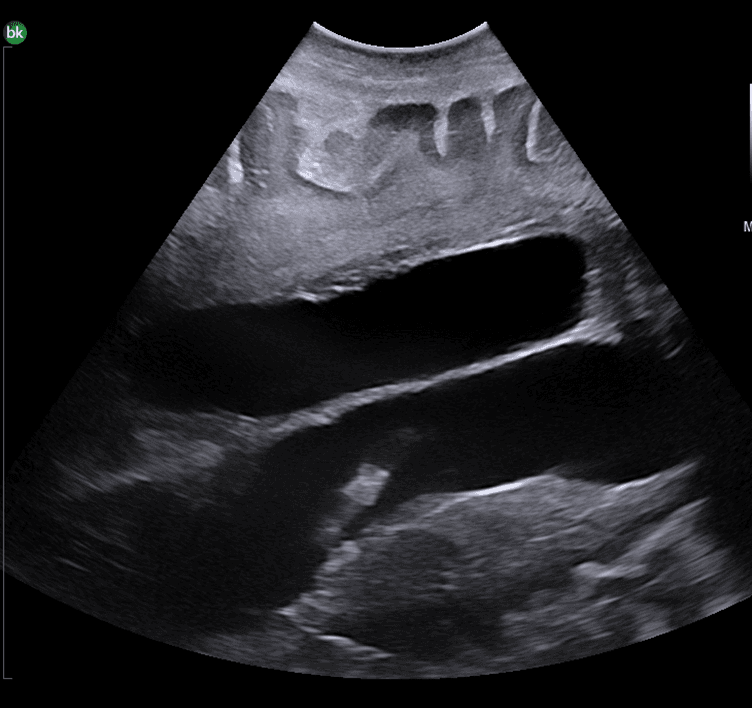

Intraoperative ultrasound showing ventricular catheter with lateral ventricles, septum pellucidum and corpus callosum — Ventricular catheter — lateral ventricles, septum pellucidum, corpus callosum

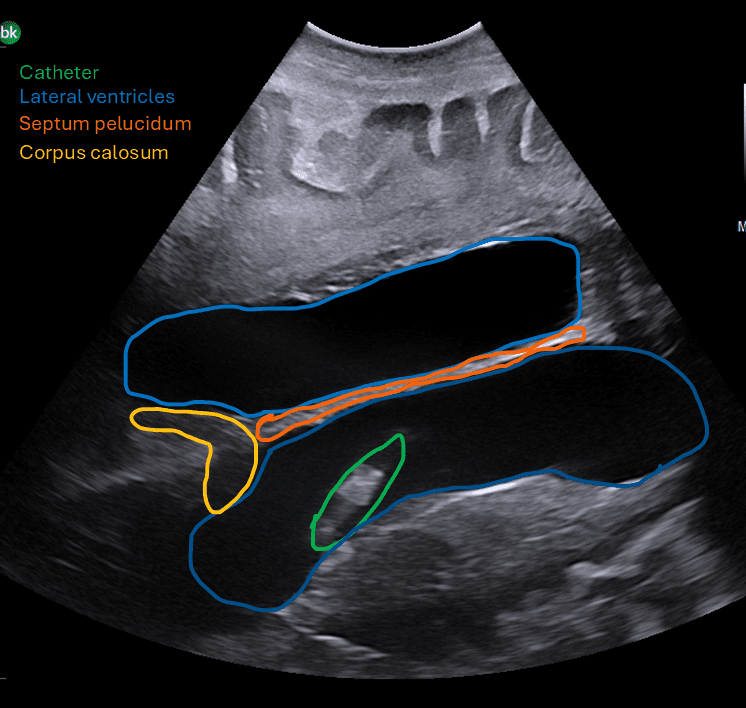

Intraoperative ultrasound showing ventricular catheter with lateral ventricles, septum pellucidum and corpus callosum — with anatomy labels — Ventricular catheter — lateral ventricles, septum pellucidum, corpus callosum

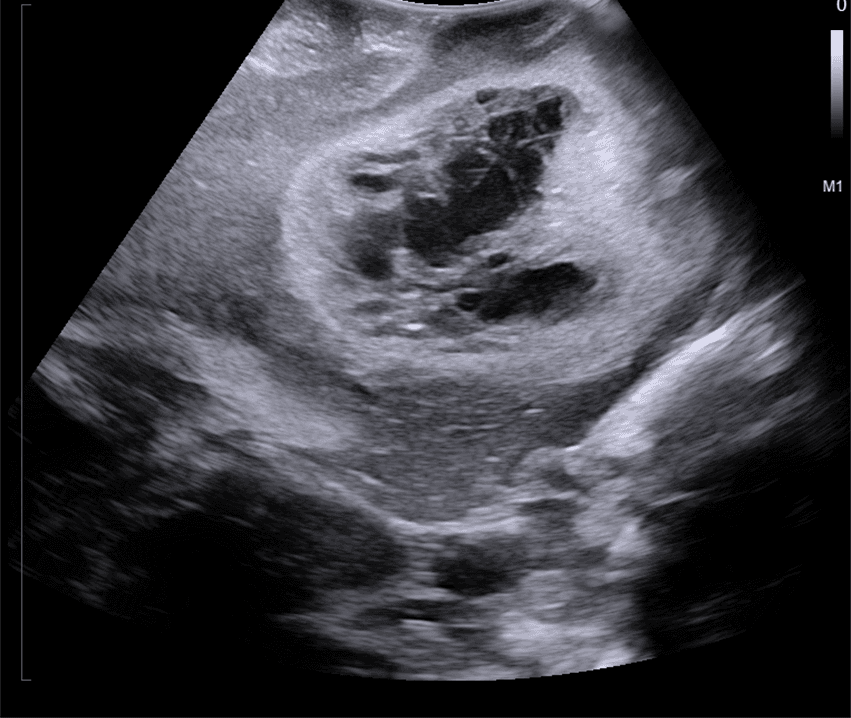

Intraoperative neurosurgical ultrasound showing brain tumor capsule, cystic component and ventricular relationship — Brain tumor — capsule, cystic component and ventricles

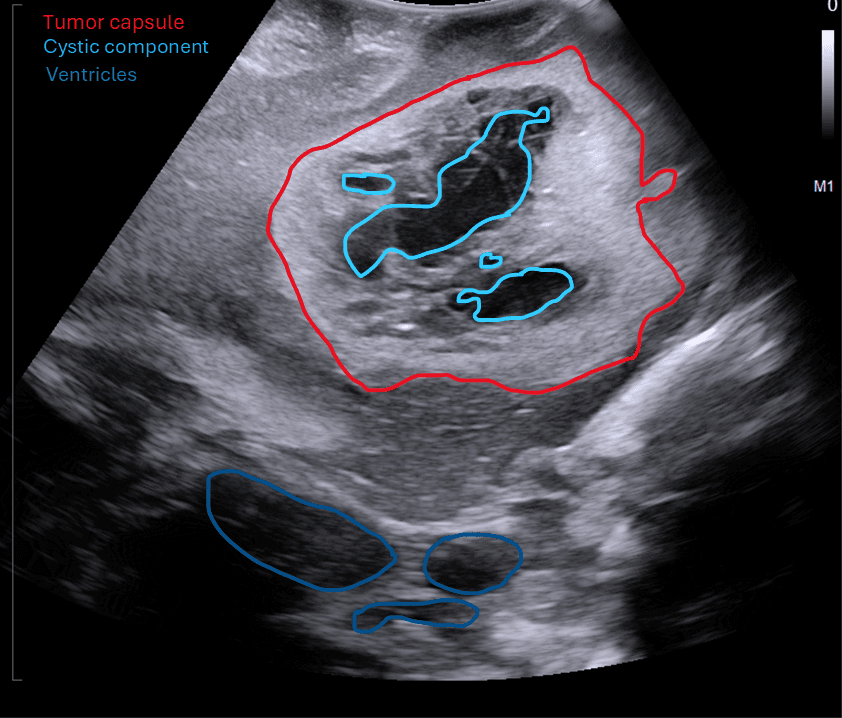

Intraoperative neurosurgical ultrasound showing brain tumor capsule, cystic component and ventricular relationship — with anatomy labels — Brain tumor — capsule, cystic component and ventricles

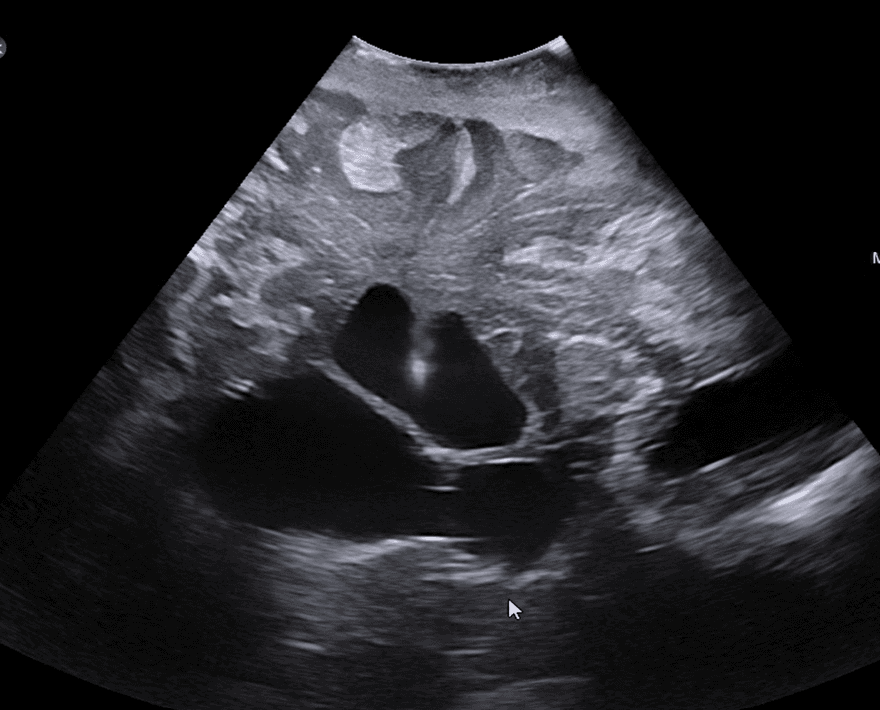

Intraoperative ultrasound showing ventricular catheter adjacent to lateral ventricles and septum pellucidum — Ventricular catheter — lateral ventricles and septum pellucidum

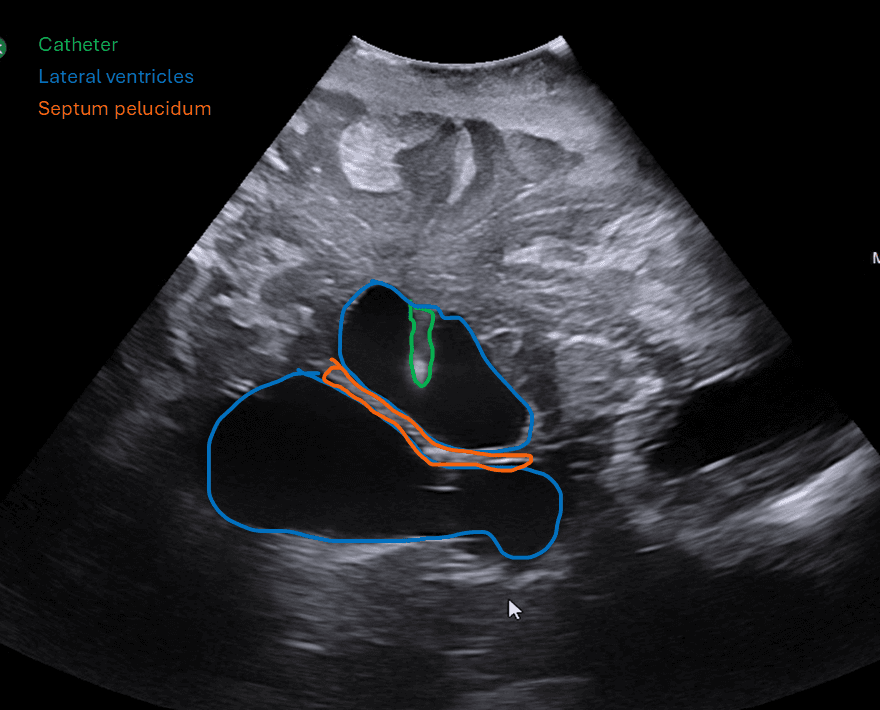

Intraoperative ultrasound showing ventricular catheter adjacent to lateral ventricles and septum pellucidum — with anatomy labels — Ventricular catheter — lateral ventricles and septum pellucidum

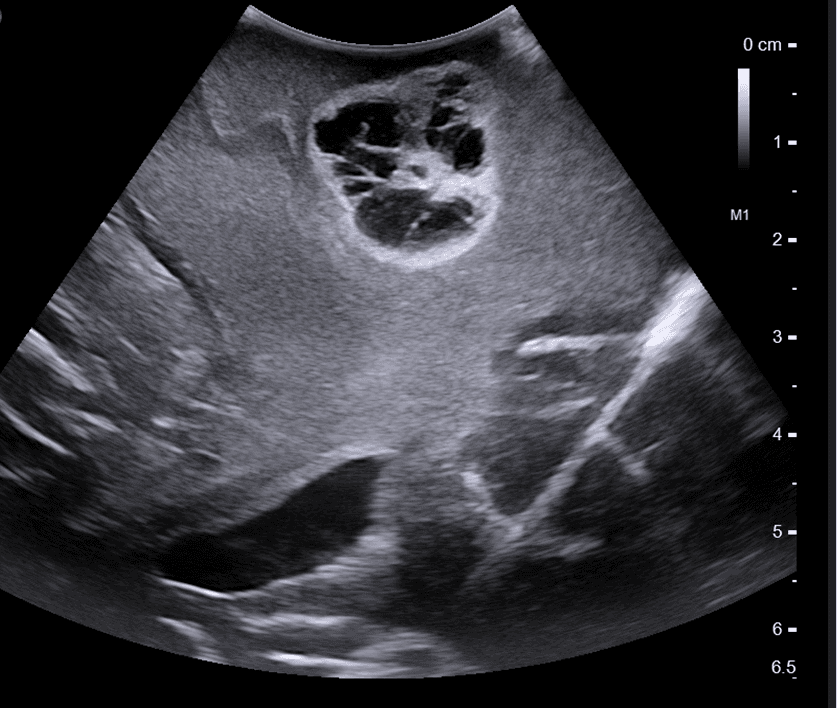

Intraoperative ultrasound of brain tumor with lateral ventricles, edema and cortex — Brain tumor — lateral ventricles, edema and cortex

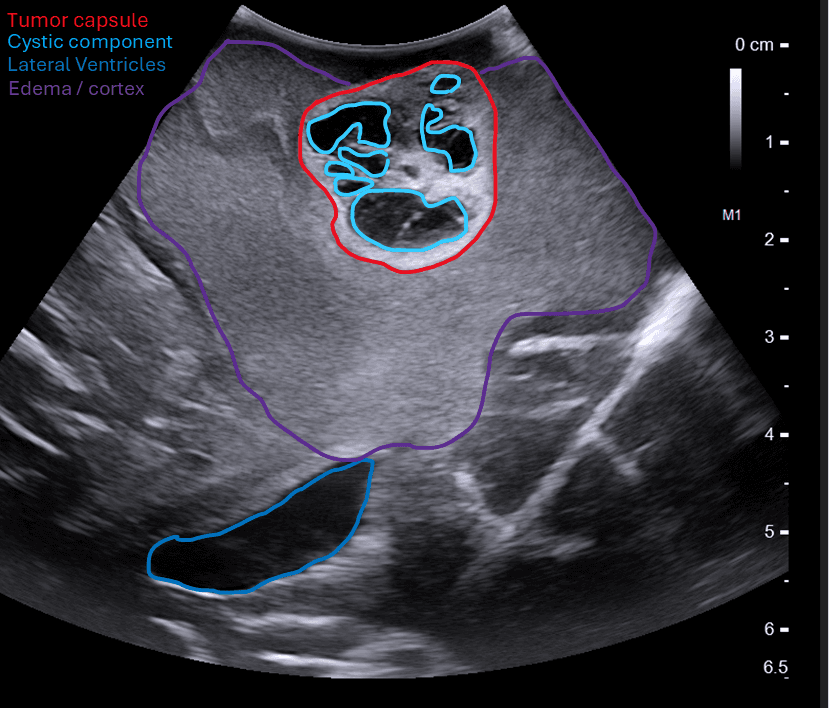

Intraoperative ultrasound of brain tumor with lateral ventricles, edema and cortex — with anatomy labels — Brain tumor — lateral ventricles, edema and cortex

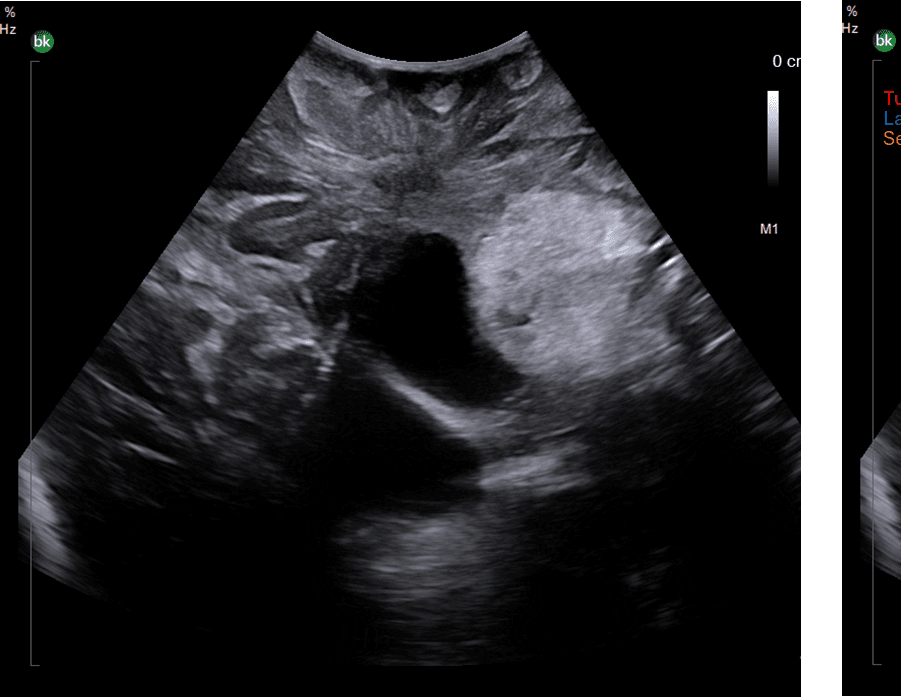

Intraoperative ultrasound showing intraventricular tumor with lateral ventricles and septum pellucidum — Intraventricular tumor — lateral ventricles and septum pellucidum

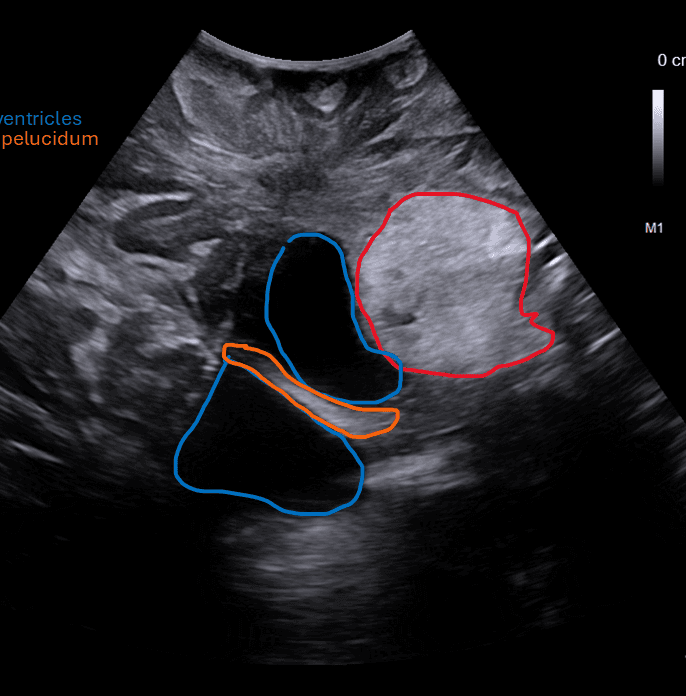

Intraoperative ultrasound showing intraventricular tumor with lateral ventricles and septum pellucidum — with anatomy labels — Intraventricular tumor — lateral ventricles and septum pellucidum

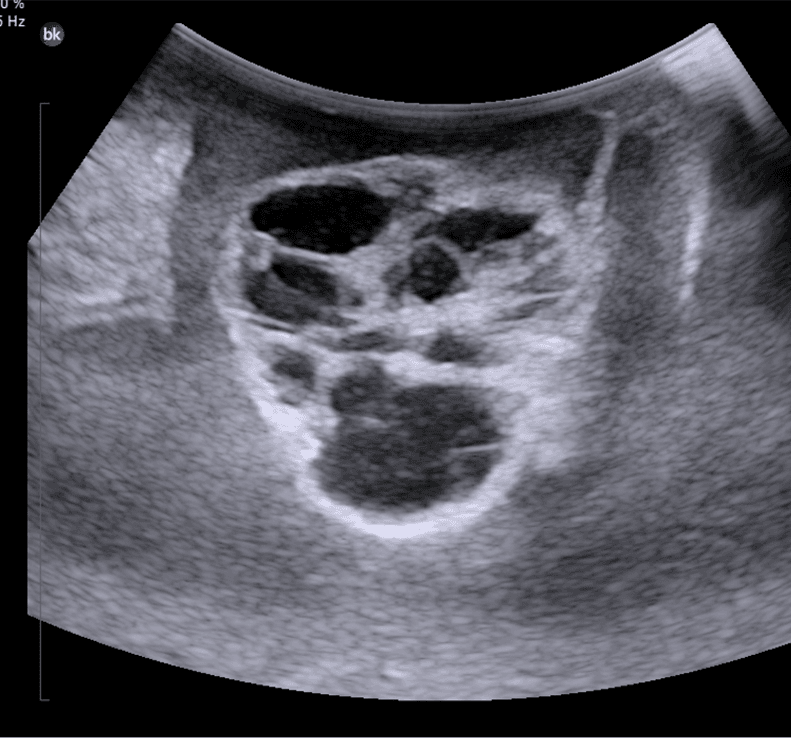

Intraoperative ultrasound showing brain tumor with well-defined capsule and cystic component — Brain tumor — well-defined capsule and cystic component

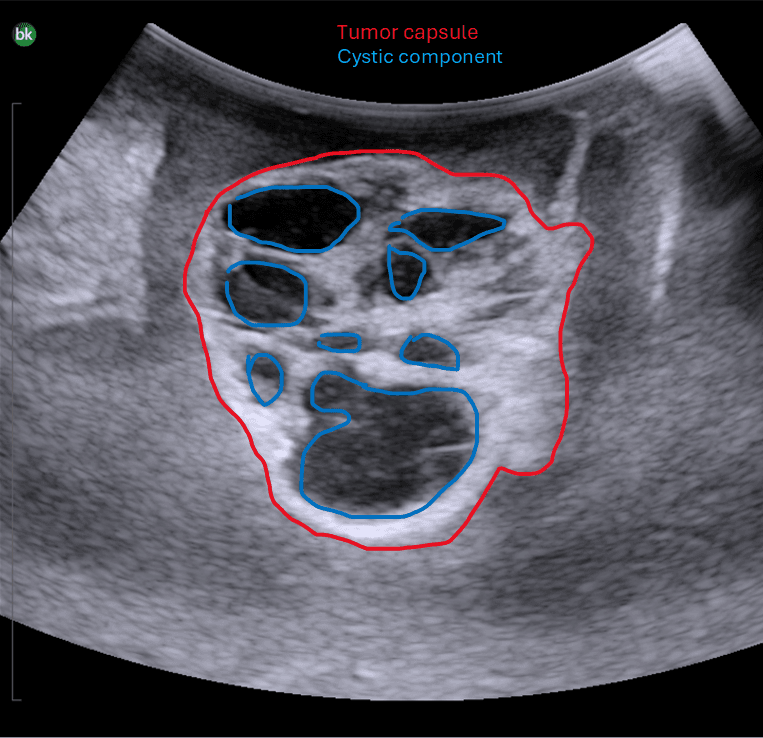

Intraoperative ultrasound showing brain tumor with well-defined capsule and cystic component — with anatomy labels — Brain tumor — well-defined capsule and cystic component

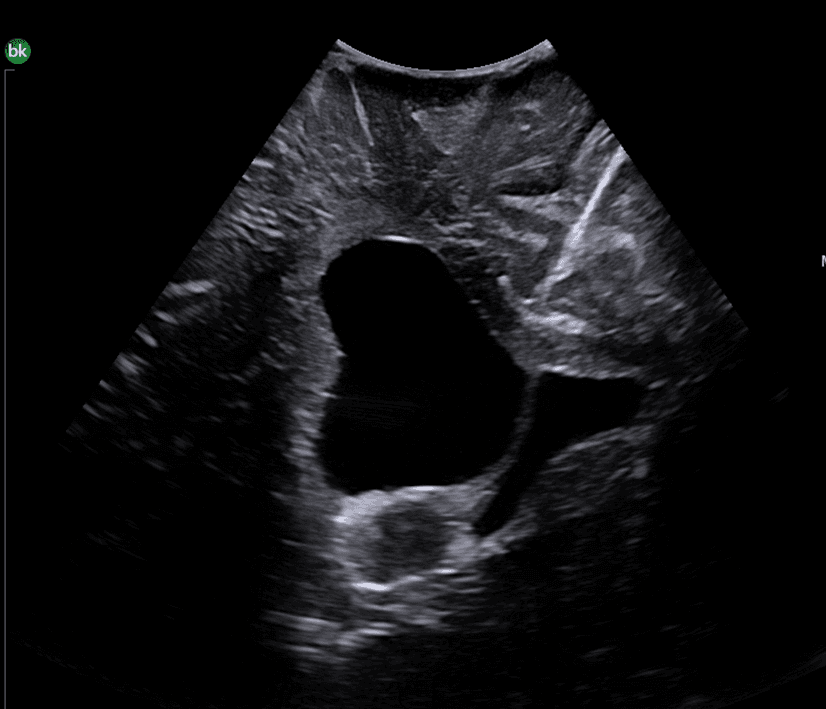

Intraoperative ultrasound showing brain tumor with lateral ventricles, septum pellucidum and corpus callosum — Brain tumor — ventricular and callosal relationship

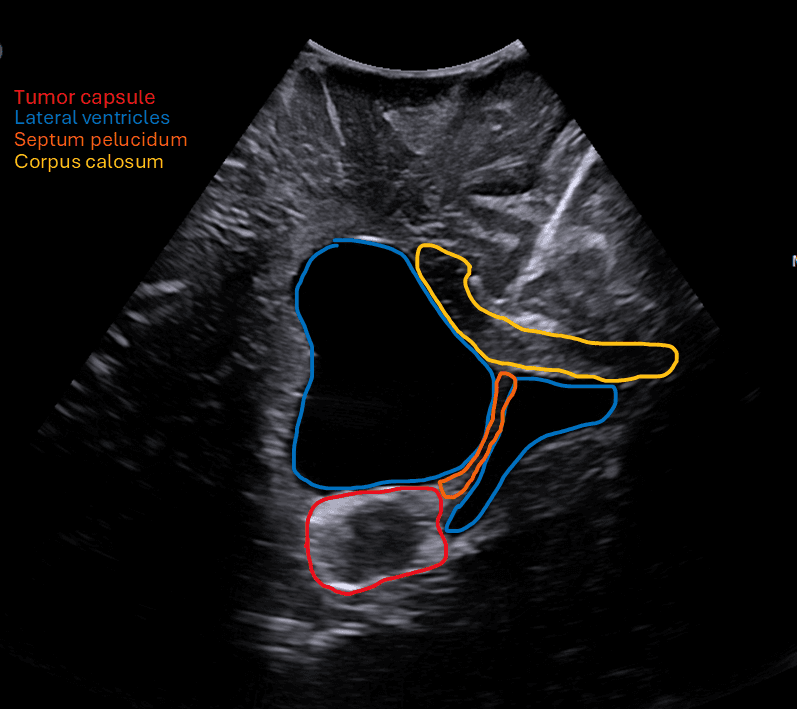

Intraoperative ultrasound showing brain tumor with lateral ventricles, septum pellucidum and corpus callosum — with anatomy labels — Brain tumor — ventricular and callosal relationship
